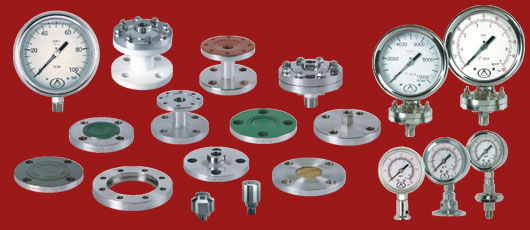

ALOT Weather proof construction & complete S.S. wetted & external parts, make these gauges ideallys suited for all kinds of process industries & OEM.


Version
Dial Size dial Size
 ø 63mm - 100mm - 150mm
Range
 Pressure, Vacuum, Compound, MMWC
Dial
 Aluminium, Black Graduation on White Background
Entry
 Direct Bottom / Back / Capillary:- S.S. / S.S. Armour
Accuracy
 +/- 1.6 % FSD
Ambient Temp
 -25ºC to + 65ºC
Process Temp
 Max 120ºC
Temp. Limit
 270ºC
Case & Bazel
 S.S. 304 Bayonet Type
Protection
 IP 65
Wetted Part
 S.S. 316, Specific Alloys for Specific Application on Request
Top Chamber
 S.S. 304
Bottom Chamber
 S.S. 316L, Specific Alloys for Specific Application on Request
Nut & Bolt
 S.S. 304
Sensing Element
 S.S. 316L / Hastelloy / Tantalum / Monel 400
Specific Alloys for Specific Application on Request
Diaphragm Coating
 No Coating / PTFE/ PTFE Lining / Silver / Gold
Connection
 Threaded, Flanged, Sealed for Sanitary & Chemical
Bottom Chamber Coating
 No Coating / PTFE / PTFE Lining / Silver / Gold
Specific Coating for Specific Application on Request
Sealling Fluid
 Silicon Oil, Glycerine, Vegetable Oil
Pointer
 Zero Adjustable / Micrometer Zero Adjustable
Window
 Toughened Glass / Shatterproof Glass
Gasket
 EPDM
Blow of Disc
 EPDM
Joints
 Argon Arc Welding
Tag
 Aluminium / S.S. 304
Certificate
 TEST & CALIBRATION CERTIFICATE

Filled Version
Accuracy
 ± 1.6% of FSD
Ambient Temp
 Maximum 65ºC
Process Temp
 Maximum 65ºC
Filling Plug
 EPDM
Window
 Plexi Glass / Toughened Glass / Shutter Proof Glass
Damping Liquid
 Glycerine
Other Features
 Same as Dry Version

APPLICATION :
Petro Chemical, Pharmaceutical, Oil Exploration & Production Papermills, Power Generation, Food and Beverage Industry, Water Treatment Plant, Offshore & Ship Building Industries.
