ALOT All Stainless Steel Thermometer specifically designed to meet requirement of process Industries. This Instruments meet the highest standards of measurement technique.

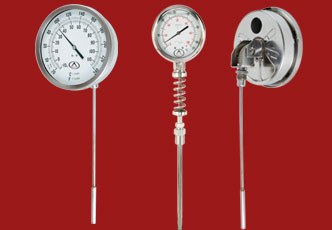

Mercury / Gas Version
Type
Stem / Every Angle / Anti Vibration Stem / Capillary - S.S. / Armour
Dial Size
ø 100mm - 150mm - 250mm
Range
0 - 50, 100, 120, 150, 160, 200, 250, 300, 400, 500, 600, 650ºC
-38 +50, -20 +60, -20 +80, -30 +70, -30 +120ºC
Degree Centigrate ºC, Degree Ferenite ºF
Dial
Aluminium, Black Graduations on White Background
Entry
Bottom - Direct / Surface, Center / Essentric Back / Back with
Panel Flange (BCPM)
Accuracy
+/- 1% FSD
Ambient Temperature
- 25ºC to 65ºC
Operating Pressure
15 Kg/cm2
Process Temp
As Per Range
Protection
IP 65
Case& Bezal
S.S. 304 Bayonet Type
Movement
S.S. 304
Bourdon
S.S. 316
Stem & Bulb
S.S. 316
Stem Dia
10 mm Standard, Options: 6 mm, 8 mm, 9.5 mm, 12 mm
Bulb Dia
10 mm Standard, Options: 6 mm, 8 mm, 9.5 mm, 12 mm
Immersion Length
300 mm / Options : As Required
Capillary Length
3mtrs / Options: MAX 25mtrs
Capillary Material
S.S. 304, S.S. 304 Armour / S.S. 304 with PVC
Covering - Option
S.S. 316
Connection
S.S. 304 1/2" BSP ( M ) Adjustable - Option: S.S. 316
Options
1/2" / 3/4" BSP/NPT Adjustable / Fix
Pointer
Micrometer Zero Adjustable
Window
Glass / Toughened / Options : Shatter Proof Glass / Plexi Glass
Gasket
EPDM
Joint
Argon Arc. Welding
Case Compensation
Bimetalic Compensator
Options
Glycerine Filled and Electrical Contact 1AMP, 230 VAC
Tag
Aluminium / S.S. 304
Certificate
TEST & CALIBRATION CERTIFICATE

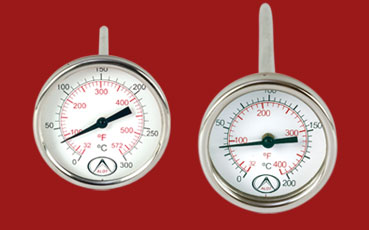

BI-Metal Version
Type
Stem / Every Angle
Dial Size
ø 63mm -100mm -150mm
Entry
Back, Bottom
Connection
Fixed / Adjustable
Other Features
Same as Mercury / Gas Version

APPLICATION :
Petro Chemical Pharmaceutical Oil Exploration & Production Papermills, Power Generation, Food and Beverage Industry, Water Treatment Plant, Offshore & Ship Building Industries.
