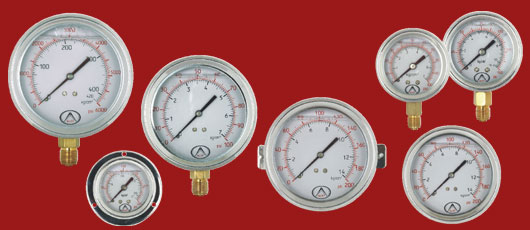

ALOT S.S. Gauges are suitable for gaseous and liquid also for corrosive environment. Liquid filling version for adverse service conditions where pulsation or vibration exists.


Fillable Version
Dial Size
 ø 50mm - 63mm -100mm -150mm
Range
 0....1 to 0....1000 kg/cm2 With PSI, BAR / PSI,
Single Scale Kg/cm2 / BAR, MMWC, Feet of Water, In. of Hg, Kilopascal
Pressure / Vacuum / Compound, Freon, Ammonia, Gaseous
PERTUCULAR RANGE AVAILABLE PERTICULAR SIZE
Dial
 Aluminium, Black Graduation on White Background
Entry
 Bottom - Direct / Surface, Center / Essentric Back with Clamp,
Back with Panel Flange {BCPM}
Accuracy
 ± 1.6% FSD
Ambient Temp.
 - 25ºC to 65ºC
Process Temp.
 Maximum 65ºC
Operating Pressure
 Maximum 75% of the Full Scale Value
Over Pressure Limit
 Full Scale Value
30% for Pressure Range<60 Kg/cm2
25% for Pressure Range=100Kg/cm2
15% for Pressure Range>100Kg/cm2
PROTECTION : IP 65 / IP 55
Case & Bezal
 S.S. 304 Machine Seald Crimped / Snap Action Bayonet Type
Bourdon Tube Moc/Shape
 Brass <70 Kg/Cm2 in ‘C’ , S.S. 316 >70 Kg/Cm2 in Helicoil
Movement
 Brass / S.S. 304
Socket Material
 Brass / S.S. 316L
Connection
 1/8" BSP ø 50mm / 1/4" BSP 63mm
:3/8" BSP ø 100mm, 150mm
Pressure Relief
 Top of the Case
Pointer
 Aluminum, Black Coloured Fix
Window
 Plexi Glass
Gasket / Filling Plug
 EPDM
Joints
 Brazing in Brass / Argon Arc Welding in S.S.
Filling
 GLYCERINE
Certificate
 TEST & CALIBRATION CERTIFICATE

Options
Version
 Dry but Fillable
Mounting
 Bottom with Surface Mounting ø 63mm, 100mm, 150 mm
Connection
 1/8" BSP, 1/4" NPT ø 63mm, 100mm
: 1/2" BSP/ NPT ø 100mm, 150mm
Window
 Shutter Proof Glass / Toughened Glass
Dial
 Customized
Tag
 Aluminium / S.S. 304
Blow of Disc
 EPDM

APPLICATION :
Petro Chemical, Oil Exploration, Fertilizer Industry, Pharmaceutical, Production Papermills, Power Generation, Hydraulic, Food and Beverage Industry, Water Treatment Plant, Offshore, Ship Building etc.
