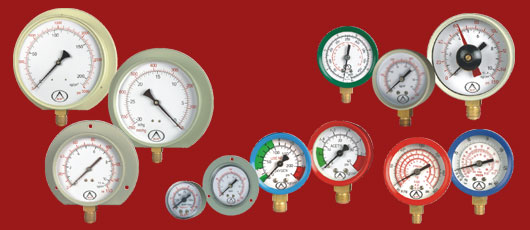

ALOT Utility pressure gauges are designed for the measurement of pressure & vaccum for all clea non-viscous liquid and gaseous media


Version
Dial size
 ø 40mm - 50mm - 63mm - 75mm - 100mm - 150mm - 250mm
Range
 0....1 to 0....1000 kg/cm2 with PSI, BAR / PSI,
Single Scale Kg/cm2 / BAR, MMWC, Feet of Water, In. of Hg, Kilopascal
Pressure / Vacuum / Compound, Freon, Ammonia, Gaseous
PERTUCULAR RANGE AVAILABLE PERTICULAR SIZE
Dial
 Aluminium Black Graduation on White Background
Entry
 Bottom - Direct / Surface / Back / Back with Panel {BCPM}
Accuracy
 ± 2.5% of FSD, ø 40mm, 50mm
± 1.6% of FSD, ø 63mm, 75mm, 100mm, 150mm, 250mm
Ambient Temp.
 -20ºC to +60ºC
Operating Process Temp.
Soldering: -20ºC to +80ºC / Brazing: -30ºC to +120ºC
Operating Pressure
 25% to 75% of FSD
Over Pressure
 Full Scale Value
Case& Bezal(Ring)
Steel Seimens Gray Finish Powder Coated
Bourdon Tube Moc/Shape
 Brass < 70 Kg/Cm2 in ‘C’ S.S. 316 > 70 Kg/Cm2 in Helicoil
Movement
 Brass
Socket Material
 Brass / AISI S.S. 304 / S.S. 316 for Ammonia
Connection
 1/8" BSP 40mm - 50mm / 1/4" BSP 63mm
3/8" BSP 100mm - 150mm / 1/2" BSP 250mm
Pointer
 Black Coloured Aluminium Pointer
Window
 Plain Glass / Plexi Glass
Joints
 Soldering < 70 Kg/Cm2, Brazing > 70 Kg/Cm2

Options
Connection
 1/4" BSP / NPT ø 40mm - 50mm - 63mm
1/2" BSP / NPT ø 100mm - 150mm - 250mm
Dial
 Customised
Certificate
 TEST & CALIBRATION CERTIFICATE

APPLICATION :
Petro Chemical, Oil Exploration, Fertilizer Industry, Pharmaceutical, Production Papermills, Power Generation, Hydraulic, Food and Beverage Industry, Water Treatment Plant, Offshore, Ship Building etc.
